Structured View Modes, Approvals & Model Controls

The composer footer is where you steer a structured view session: the permission mode decides what runs without asking, approval cards gate the rest, and (when the adapter advertises them) model and reasoning-effort selectors tune the agent itself. For the surrounding UI, see Structured view Interface.

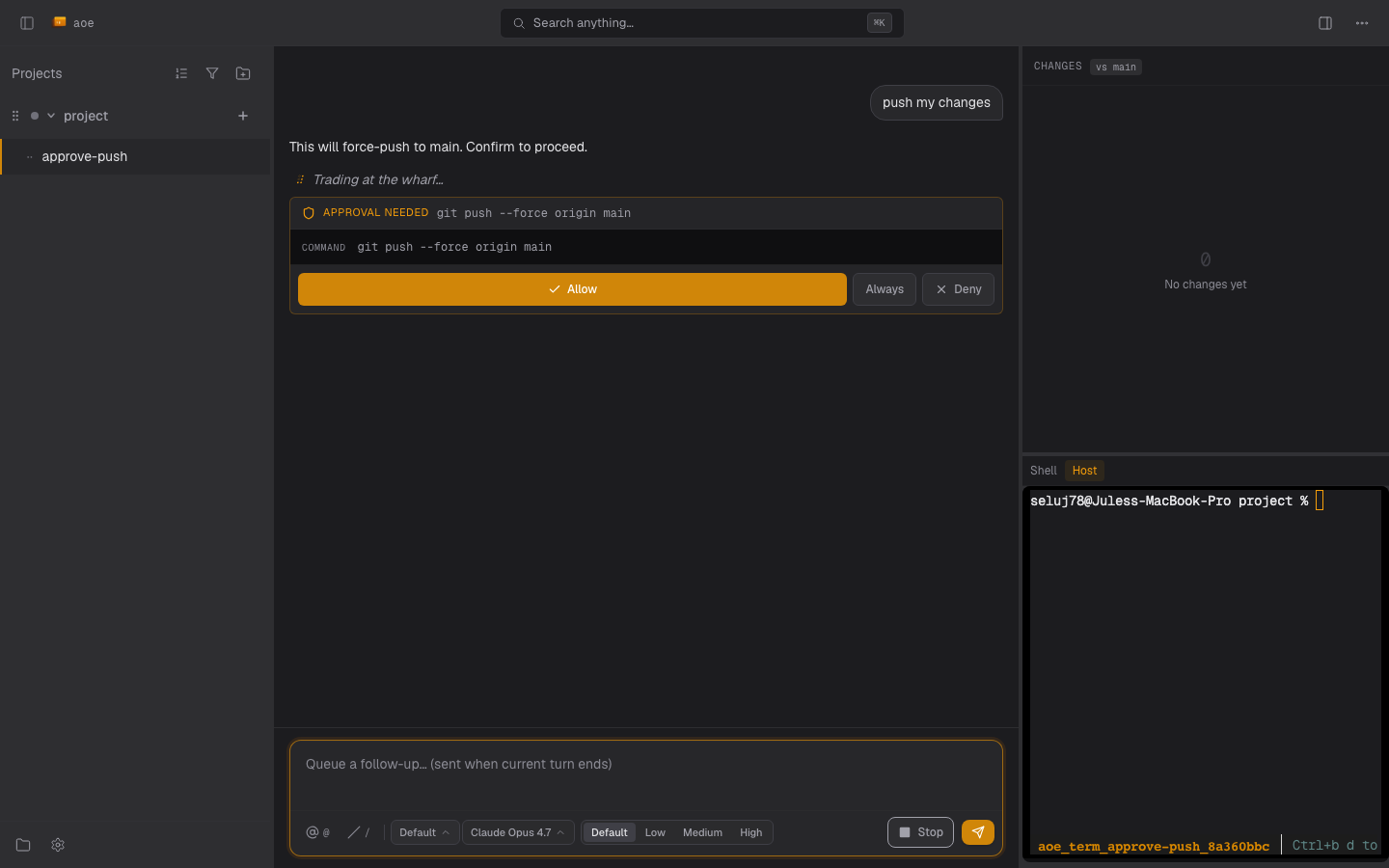

A destructive-action approval card with a long-press confirmation ring

Permission modes and YOLO

Structured view sessions run in one of the permission modes advertised by the ACP adapter. The composer’s mode picker shows whatever the agent reports in its NewSessionResponse.modes; for claude-agent-acp the typical set is:

Mode id	Meaning
`default`	Every Write/Edit/Bash routes through an approval card.
`acceptEdits`	Edit-kind tools auto-approved; Bash and unknown tools still prompt.
`bypassPermissions`	All tools auto-approved. The structured view analogue of YOLO.
`plan`	Read-only; the agent drafts a plan but does not run side-effectful tools.

Other adapters report their own ids. Gemini (over gemini --acp) uses the gemini-cli ApprovalMode names: auto_edit folds onto acceptEdits semantics and yolo onto bypassPermissions, so a Gemini session is classified the same as the equivalent claude-agent-acp mode.

YOLO mode maps to `bypassPermissions`

When [session] yolo_mode_default = true (or the wizard’s “Auto-approve actions” toggle is on), structured view asks the adapter to start the session in bypassPermissions immediately after session/new. This mirrors what the tmux view does by appending --dangerously-skip-permissions to the Claude CLI argv.

The wiring is best-effort: the structured view fires session/set_mode after the handshake and continues regardless of the response. If the adapter accepts, the mode picker flips to bypassPermissions and you stop seeing approval cards. If it rejects (see next section), a non-blocking amber notice appears above the composer with the adapter’s reason and the session keeps running in whichever mode it landed on.

`bypassPermissions` may not be available

claude-agent-acp gates bypassPermissions on the ALLOW_BYPASS environment variable. If the daemon spawned the adapter without ALLOW_BYPASS=1 in its env, session/set_mode("bypassPermissions") returns “Mode bypassPermissions is not available” and the session stays in default. Two ways out:

Restart aoe serve with ALLOW_BYPASS=1 so the adapter advertises the mode. The structured view then drives it automatically on every new YOLO-mode session.
Live with default and approve as you go, or pick acceptEdits from the composer mode picker for edit-only auto-approval.

The Auto-approve toggle in the wizard does not configure ALLOW_BYPASS; the env var is a daemon-process input set wherever aoe serve actually launches.

Approvals

When the agent wants to run a tool that requires approval, the structured view shows an approval card:

Benign tools (read, search, list): single tap on a primary button.
Destructive tools (rm -rf, git push --force, writes to system paths): long-press 800ms with a progress ring and a haptic confirmation. Single tap is reserved for the deny button.

You can configure how structured view classifies destructive operations and the timeout before a pending approval auto-cancels:

[acp]
approval_timeout_secs = 300
destructive_require_double_confirm = true

The card clears as soon as your decision is accepted, rather than waiting on the broadcast that confirms it. If the approval already resolved on the daemon (a concurrent decision, the silent-tool watchdog, or the agent offering no option matching your choice), resolving it again clears the card quietly instead of surfacing an error. This holds on both the web dashboard and the native TUI cockpit.

Notifications and sound

When an approval lands, the structured view fires two channels so a user away from the dashboard still sees the agent is blocked:

Web push. If the PWA is installed and notifications are enabled, the daemon sends an OS-level push tagged acp-approval-<session>. Tapping the notification deep-links back to the structured view. Unlike status-change pushes, approval pushes are not suppressed when the dashboard or TUI is active; the service worker routes focused clients to an in-app toast instead of an OS banner. See Push notifications.
Browser sound. The structured view plays a chime in the dashboard tab whenever pending approvals go from zero to non-zero. Configure the file via [sound] on_approval in the daemon config or the Sound category of the Settings TUI. The chime is independent of the host-side audio used by the tmux status flow; the structured view case often runs aoe serve on a remote box and the host speaker would be on the wrong side of the wire.

Model and reasoning effort

Structured view sessions render two extra selectors in the composer footer beside the mode pill when the ACP adapter advertises them: a model dropdown and a reasoning-effort selector. Both come from one wire mechanism, ACP SessionUpdate::ConfigOptionUpdate, stabilised upstream in claude-agent-acp v0.37.0 (Opus 4.8 added in v0.38.0). The adapter emits the full snapshot of every selector (mode, model, reasoning effort, future categories) whenever any one of them changes; the structured view replaces its cached list in full.

When the pickers appear

The pickers only render if the adapter publishes the matching category. claude-agent-acp v0.39.0+ advertises a model selector for every session, and adds a reasoning-effort selector when the current model reports supportsEffort=true. Older adapters that emit no config_option_update show neither picker; this is by design so non-Claude backends don’t grow empty UI chrome.

Model via the unstable `session_model` channel

Some adapters advertise the model not as a config_option but through the ACP unstable_session_model capability: a SessionModelState (current model plus available models) on the session/new and session/load response, switched with session/set_model. Cockpit reads that channel too and normalizes it into the same model dropdown, so it looks and behaves identically regardless of which channel the agent uses. If an agent exposes the model on both channels, the config_option one wins (it has a push/echo path; session/set_model only acks), so the UI never shows two model dropdowns. Because session/set_model returns no model-state echo, cockpit synthesizes the confirming update itself after the switch is acknowledged.

Setting a value

Clicking an option fires POST /api/sessions/{id}/acp/config-option with { config_id, value } which the structured view supervisor turns into ACP session/set_config_option. The UI is pessimistic: the chip still shows the previous current value while the request is in flight, with a subtle dim and a disabled re-click on the just-clicked option, until the adapter pushes a confirming config_option_update. This avoids “snap back” on slow networks (Cloudflare Tunnel can run 300-800ms round trips).

The `Default` reasoning effort

The reasoning-effort dropdown includes a Default option alongside adapter-supported levels like Low | Medium | High. Default is not a fixed effort; the SDK resolves it per current model. Picking it explicitly tells the adapter to drop any session-level effort pin so the model uses its default reasoning budget. See upstream PR agentclientprotocol/claude-agent-acp#701.

When a switch fails

If the adapter rejects session/set_config_option (rate limit, missing capability, transient error), an amber non-blocking notice appears next to the composer with the configured selector name, the rejected value, and the adapter’s reason. The notice auto-dismisses when a later snapshot reports the originally-requested value as current (the user retried and won, or the adapter applied the value asynchronously). The session keeps running in whichever value the adapter last confirmed.

Lifecycle clears

The cached selector list clears on AgentSwitched (a Claude-to-Codex handoff invalidates Claude-specific models) but survives /clear: adapter capabilities are process-scoped, not conversation-scoped.
